Name: Kaiapoi Flood Building Level 2020

Display Field: Name

Type: Feature Layer

Geometry Type: esriGeometryPolygon

Description: While the Waimakariri District Council has taken all reasonable care in providing correct information, all information should be considered as being illustrative and indicative only. Your use of this information is entirely at your own risk. You should independently verify the accuracy of any information before taking any action in reliance upon it.Read the full disclaimer here.A full description is available in the Metadata.Abstract:Kaiapoi Fixed Floor Level map shows recommended relative levels within Kaiapoi that should be used as minimum floor levels for natural hazard sensitive activities (buildings with one or more habitable rooms and/or contain one or more employees and/or a place of assembly).The Reduced Levels shown on the Kaiapoi Fixed Floor Level map have been determined from delineating areas or basins within Kaiapoi that have no natural overland flowpath. The RL for each area is calculated based on the 200 year flood level plus freeboard. RL, or ‘reduced level’ refers to identifying survey points with reference to a common assumed datum – in this situation the common datum is the Lyttelton 1937 Vertical Datum. An RL of “2” shown on the Kaiapoi Fixed Floor Level map means that floor levels need to be built a minimum of 2m above this level.The freeboard used in each area varies from 300mm to 500mm and is dependent on the hazard due to flooding in each area. The areas encompassing Otaki Street and Bracebridge Street have additional freeboard applied to reflect the additional risk associated with pump failure in both of these catchments.Update Frequency:As needed.Point of Contact:Waimakariri District Council.Lineage:Data was digitized using aerial imagery and LINZ parcel data. Accuracy may vary.

Copyright Text: Waimakariri District Council

Default Visibility: false

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0

Max Scale: 0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: false

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 1570081.9430999998
YMin: 5195066.4375
XMax: 1573606.9939000001
YMax: 5199802.7532
Spatial Reference: 2193  (2193)

Drawing Info:

Renderer:
Class Breaks Renderer:
Field: Adopted_Min_FFL
Min. Value: 1.78
ClassBreakInfos:
• Class Maximum Value: 2
  Label: 1.78 - 2.00 RL
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [255, 0, 0, 255]
  Outline:
  Style: esriSLSSolid
  Color: [110, 110, 110, 255]
  Width: 1
• Class Maximum Value: 2.25
  Label: 2.00 - 2.25 RL
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [255, 119, 0, 255]
  Outline:
  Style: esriSLSSolid
  Color: [110, 110, 110, 255]
  Width: 1
• Class Maximum Value: 2.5
  Label: 2.25 - 2.50 RL
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [255, 200, 0, 255]
  Outline:
  Style: esriSLSSolid
  Color: [110, 110, 110, 255]
  Width: 1
• Class Maximum Value: 2.75
  Label: 2.50 - 2.75 RL
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [238, 255, 56, 255]
  Outline:
  Style: esriSLSSolid
  Color: [110, 110, 110, 255]
  Width: 1
• Class Maximum Value: 3
  Label: 2.75 - 3.00 RL
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [182, 255, 143, 255]
  Outline:
  Style: esriSLSSolid
  Color: [110, 110, 110, 255]
  Width: 1
• Class Maximum Value: 3.25
  Label: 3.00 - 3.25 RL
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [89, 255, 225, 255]
  Outline:
  Style: esriSLSSolid
  Color: [110, 110, 110, 255]
  Width: 1
• Class Maximum Value: 3.5
  Label: 3.25 - 3.50 RL
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [51, 194, 255, 255]
  Outline:
  Style: esriSLSSolid
  Color: [110, 110, 110, 255]
  Width: 1
• Class Maximum Value: 3.75
  Label: 3.50 - 3.75 RL
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [56, 106, 255, 255]
  Outline:
  Style: esriSLSSolid
  Color: [110, 110, 110, 255]
  Width: 1
• Class Maximum Value: 4
  Label: 3.75 - 4.00 RL
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [0, 0, 255, 255]
  Outline:
  Style: esriSLSSolid
  Color: [110, 110, 110, 255]
  Width: 1
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: true
Supports Having Clause: true
Supports Count Distinct: true
Supports Time Relation: true
Supports Sql Format: false
Supports Query Analytic: false
Supports Query With Current User: true

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• Notes ( type: esriFieldTypeString, alias: Notes, length: 50 )
• Name ( type: esriFieldTypeString, alias: Name, length: 50 )
• Number ( type: esriFieldTypeSmallInteger, alias: Number )
• Flood_Level_200 ( type: esriFieldTypeDouble, alias: Flood_Level_200 )
• Flood_Level_100 ( type: esriFieldTypeDouble, alias: Flood_Level_100 )
• FFL_200 ( type: esriFieldTypeDouble, alias: FFL_200 )
• FFL_100 ( type: esriFieldTypeDouble, alias: FFL_100 )
• Freeboard_200 ( type: esriFieldTypeInteger, alias: Freeboard_200 )
• Freeboard_100 ( type: esriFieldTypeInteger, alias: Freeboard_100 )
• Area_ID ( type: esriFieldTypeString, alias: Area_ID, length: 50 )
• Adopted_Min_FFL ( type: esriFieldTypeDouble, alias: Adopted_Min_FFL )
• SHAPE ( type: esriFieldTypeGeometry, alias: SHAPE )
• SHAPE_Length ( type: esriFieldTypeDouble, alias: SHAPE_Length )
• SHAPE_Area ( type: esriFieldTypeDouble, alias: SHAPE_Area )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

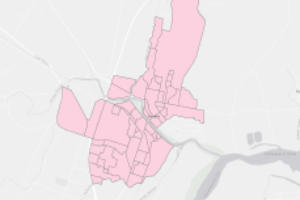

  Iteminfo   Thumbnail   Metadata
